Everything the sheet needs

Nine tools in the rail, a Library of forty-six presets behind them, and a factory on the end of it. Free for the whole set, with nothing behind a plan or a trial.

Upload plansSee the tools

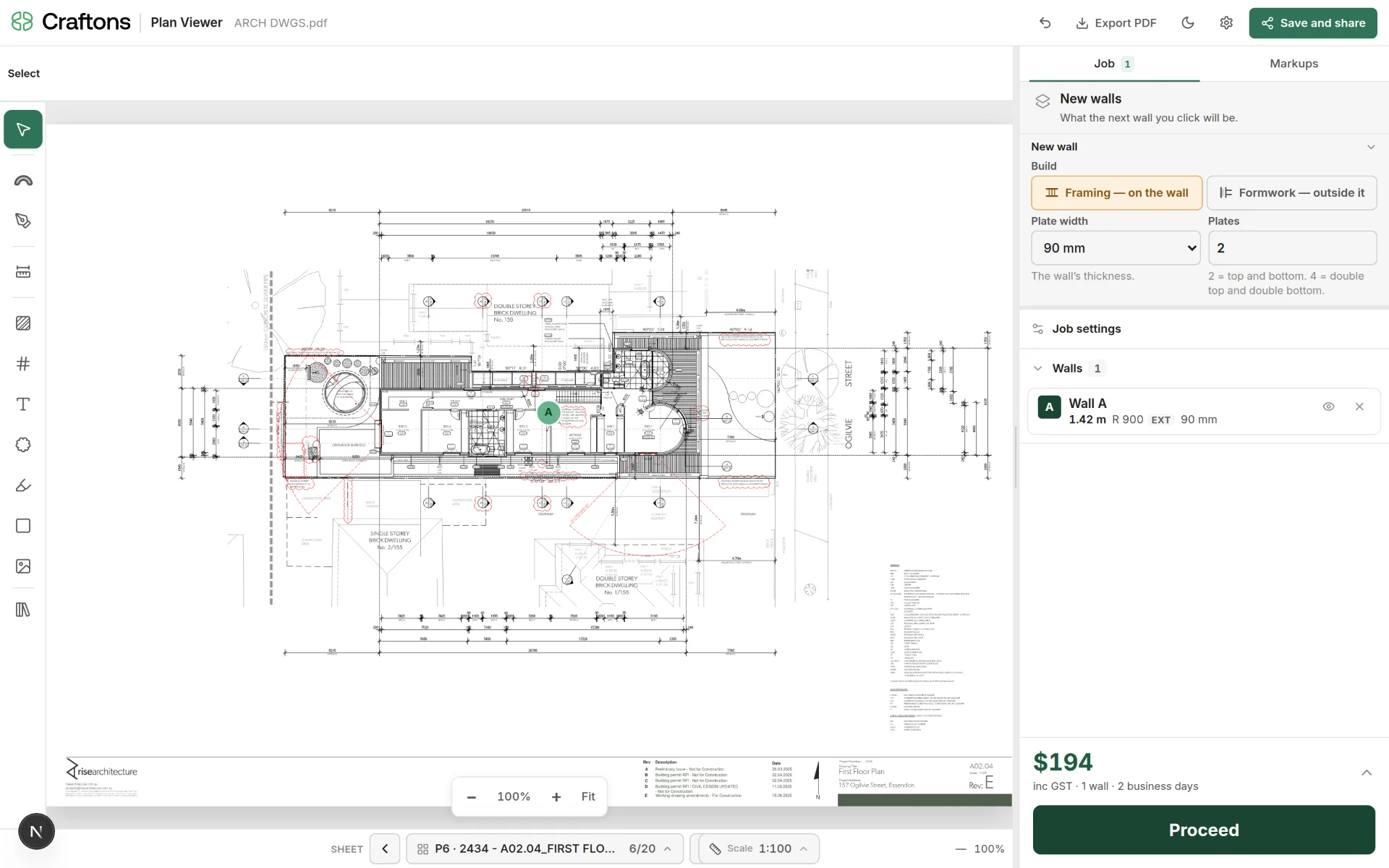

The Plan Viewer workspace: a first floor plan open with a curved wall picked and its plates in the job panel

The workspace

Every sheet of the set, one screen.

A revision cloud around a room label and a 3,200 mm dimension across the room, drawn on the plan

Measure and mark up

Off the drawn geometry, not a scale bar.

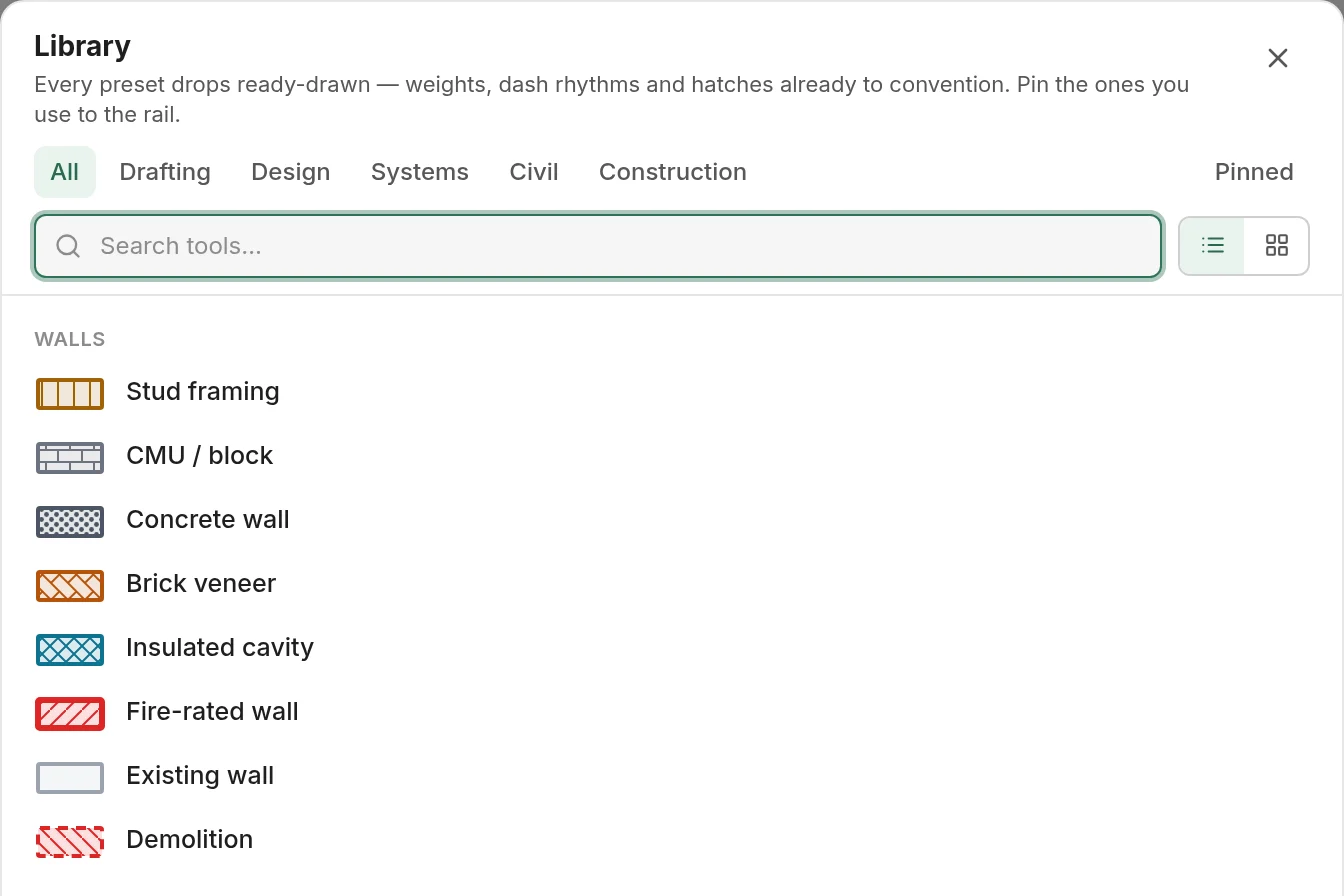

The Library panel: wall types, line symbols and review stamps, grouped by discipline

The Library

Forty-six presets, drawn to convention.

Measured off the drawing, not the scale bar

A CAD-exported sheet already holds the geometry. The viewer reads the arc under your click, so the radius and the developed length are the drawing’s, not an estimate off a printed scale.

A 90° R900 curved wall picked on the plan: the band of plates drawn along the corner, labelled A

One wall, one continuous run

Clicking carries the wall on through every stretch it touches. A double-click takes the whole chain in one go.

A

Wall A

1.41 m · R 900 external · 90 mm plates

Framing
Radius
900mm · EXT
Angle
90°
Width
90mm
Length
1,414mm
Sheet
A02.04 · First floor
Build
Framing · plates on the wall
Plates
2 · top and bottom

The feature that pays for it

Framing sits on the wall at its own thickness; formwork stands off the poured face. Pick either before the click, and the plates price as you go.

The nine tools in the rail

Single-key shortcuts, one undo stack over the whole take-off, and a rail you can pin your own presets to.

Wall

Click a wall line and it becomes one continuous run, measured off the drawing.

Pen

Lines, arcs and circles over the sheet, with grips to adjust them after.

Measure

Dimension runs that read their length off the linework, not off a ruler on the screen.

Area

Close a shape and it reports its area in square metres.

Count

One click, one tick. The session totals itself.

Text

Notes pinned to the sheet, where the next person will look for them.

Cloud

Revision clouds, drawn the way the site expects to read a change.

Draw

Freehand marker straight over the drawing.

Library

Forty-six presets, each one already drawn to convention, pinnable to the rail.

Forty-six presets in the Library

Stud framing, block, concrete, brick veneer, fire-rated, demolition. Doors, windows, centrelines, grid lines, section cuts. Each with its weight, dash rhythm and hatch already to convention. Searchable, and pinnable to the rail.

What opens

  • PDF plan sets

    The whole package, however many sheets. Each one opens when you open it.

  • DXF and DWG

    CAD linework, with its layers switchable exactly as drawn.

  • Any sheet size

    Set the scale per sheet; the viewer votes on it from the printed dimensions.

What leaves

  • Marked-up PDF

    Export the sheet with your markups on it.

  • Take-off CSV

    Areas, counts and their totals as a spreadsheet.

  • A quote link

    Share the priced job as a link anyone on the team can open.

Open your plans and see

No account, no card, no page limit. Drop in the package and every tool on this page is yours.

Upload plans
